Passive Components and Filters

Showing 1-24 of 73 item(s)

Tappers

20 dB, Tapper, 340 – 6000 MHz, CT-20-TUW-43-i6

Andrew

44840

Ref.: CT-20-TUW-43-i6

€75.55

Tapper Low PIM, 20dB, 340-6000MHz. 4.3-10 female connectors. Indoor/Outdoor

triplexer

Double Triplexer E11F01P78

Andrew

32690

Ref.: E11F01P78

€607.14

Double Triplexer 698-960//1710-2170//2300-2690 MHz, DC bypass on all ports

Quadriplexer

E14F15P12 Double Quadriplexer

Andrew

41429

Ref.: E14F15P12

€858.63

Double Quadriplexer 700-800//900//1800//2100-2600 MHz, (DC Smart Bypass), with 4.3-10 connectors

Diplexer

E14F05P10 Diplexer, 380–960 MHz/1695–2690 MHz

Andrew

40874

Ref.: E14F05P10

€223.08

Diplexer, 380–960 MHz/1695–2690 MHz, DC Pass on all ports, with 4.3-10 connector. Includes installation hardware

DC Block

DC Block DIN 7/16", ADCB-DFDM-DB

Andrew

29620

Ref.:

€105.26

DC Block, Dual Band 650–2700 MHz, with DIN 7/16" Female to DIN 7/16" Male interface

Loads

SMP charging female 1W, 19K15R-001E4

Rosenberger

6702

Ref.: 19K15R-001E4

€30.20

SMP charging female, 1W, 18GHz

Hybrid Matrix

2x2 Hybrid Coupler, 698–2700 MHz, VD-H2X2-CPUSE-NA

Andrew

46566

Ref.: VD-H2X2-CPUSE-N-A

€57.50

ValuDAS™ 2x2 hybrid coupler, frequency: 698–2700 MHz

Splitters

2-way splitter under PIM, S-2-UW-H-43-I6

Andrew

42344

Ref.: S-2-UW-H-43-I6

€117.65

2-Way Splitter, Low PIM, Ultra Wideband, 555-6000MHz (Mounting hardware sold separately, P/N: 42396A-17)

Attenuators

DC-3GHZ N(male)-N(Female) attenuator 5W, 10dBs.

Surecall

47107

Ref.: SC-ATNR-10

€63.40

Fixed coaxial attenuator N male / N Female; Frequency: DC-3GHZ N(M)-N(H), Power 5W, Attenuation: 10dBs.

H-3-UW-43-AI6, Low PIM Hybrid Combiner, 555–6000 MHz

Filters-Combiners

H-3-UW-43-AI6, Low PIM Hybrid Coupler, 555–6000 MHz

Andrew

42879

Ref.: H-3-UW-43-AI6

€197.00

Low PIM Air Dielectric Coupler, 4.3-10 Connectorization, Ultra Wide Bandwidth 555–6000 MHz

Downloaders

Lambda/4 DIN7/16 surge arrester (female-male) 380-520MHZ (TETRA)

Spinner

16318

Ref.: BN 766419

€90.00

Surge arrester 7-16 connectors, 3000W, Frequency 380-512 MHz - Lambda/4

Directional Couplers

Directional coupler 10 dB, 4.3-10 555–6000 MHz, C-10-UW-43-AI6

Andrew

43166

Ref.: C-10-UW-43-AI6

€119.36

Directional coupler, air dielectric, coupling value: 10 dB, ultra-wide bandwidth 555–6000 MHz

Hybrid Matrix

High Power 3x3 Low PIM Hybrid Array, H-3X3-CPUSE-43-AI6

Andrew

39960

Ref.: H-3X3-CPUSE-43-AI6

€505.53

High power 3x3 low PIM hybrid array, 555-2700MHz. Connectors 4.3-10

Diplexer

E14F05P59 Diplexer 380-960 MHz/1425-2690 MHz

Andrew

40956

Ref.: E14F05P59

€504.98

Dual diplexer, 380–960 MHz/1425–2690 MHz, DC SMART bypass on all ports, 4.3-10 connectorization

Attenuators

SMP Attenuator (Male-Female), 10dBs, 19AS101-K10E3

Rosenberger

48053

Ref.: 19AS101-K10E3

€84.78

Fixed coaxial attenuator N Male / N Female; Frequency: DC-15GHZ N(M)-N(H), Attenuation: 10dBs.

Downloaders

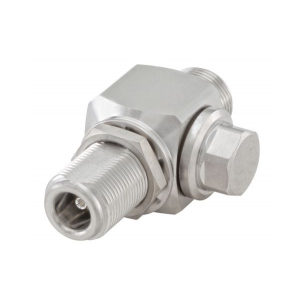

Surge arrester N, 53BK501-K00N1

Rosenberger

4273

Ref.: 53BK501-K00N1

€66.80

Gas surge arrester, N female-N female connector, DC to 3 GHz

Loads

SMP male load 1W, 19S15R-001E4

Rosenberger

20938

Ref.: 19S15R-001E4

€38.10

SMP male charging, 1W, 18GHz

Directional Couplers

Directional coupler 10dB, 555–6000Mhz, C-10-UW-N-AI6

Andrew

44005

Ref.: C-10-UW-N-AI6

€82.52

10dB Directional Coupler, N Connector, Ultra Wideband: 555–6000 MHz

Splitters

Low Power 4-Way Splitter, S-4-UW-L-43I53

Andrew

47532

Ref.: S-4-UW-L-43I53

€141.76

4 Way Splitter Low Power Ultra Wideband 555-6000MHz

Diplexer

Diplexer, 380–960 MHz/1425–2690 MHz, dc pass all, E14F05P57

Andrew

40976

Ref.: E14F05P57

€318.18

Diplexer for bands 380-960MHz // 1425-2690MHz, 4.3-10 female connectors, DC pass on all ports

Hybrid Matrix

4x4 Hybrid Array, Low PIM, 555–2700 MHz, H-4X4-CPUSE-NAI6

Andrew

35692

Ref.: H-4X4-CPUSE-NAI6

€498.34

4x4 hybrid array, low PIM, high power with N female connectorization, Bandwidth: 555–2700 MHz. 3rd Order IMD -160 dBc

Attenuators

Attenuator 4.3-10(Male-Female), 10dBs, AT-10-43-MF

Andrew

48711

Ref.: AT-10-43-MF

€123.87

Fixed coaxial attenuator 4.3-10 Male/Female, Frequency: DC-6000GHz, attenuation: 10dBs

Passive Components and Filters

ABT-NFNM-DB Dual Band Arrester with Bias Tee

Andrew

35353

Ref.: ABT-NFNM-DB

€148.25

698-2700 MHz surge arrester, with Bias Tee to inject RF signal through SMA connector. N-type arrester ports

Loads

Load N female 1W, 53K1RR-001N3

Rosenberger

4937

Ref.: 53K1RR-001N3

€13.20

Load N female, 50 Ohm, 1Watt, 4GHz
