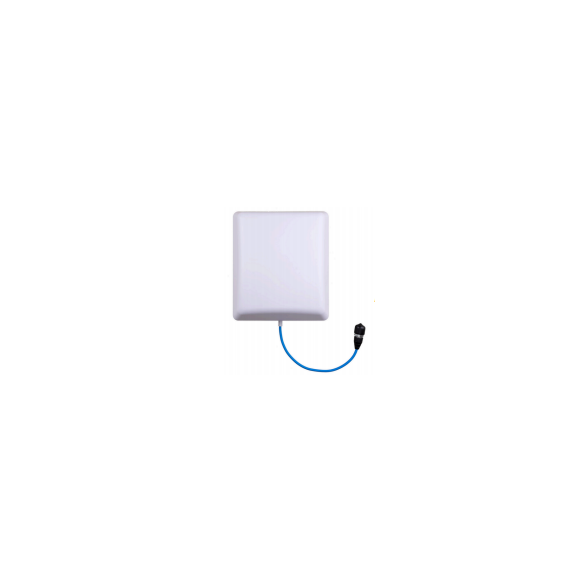

Low PIM Outdoor Panel Antenna 600-6000 MHz, N Female, ref A123-50879

Low PIM Outdoor Panel Antenna 600-6000 MHz, N Female, ref A123-50879

Name: Low PIM Outdoor Panel Antenna 600-6000 MHz, N Female, ref A123-50879
Brand: Epirsa
SKU: 50879
Price: 47.25 EUR
Availability: InStock

Ref: A123-50879

€39.05

Tax excluded

Low PIM Outdoor Panel Antenna 600-6000 MHz,

N Female,

PIM: 2x20W, -150dBc,

Size: 180x158x60mm:

Electrical Specifications

Frequency Range(MHz) 600-698 617-698 698-960 1710-2700 3300-4000 4000-6000

Gain(dBi) 5.0 5.0 6.5 9.0 7.0 8.5

VSWR ≤2.3 ≤2.3 ≤2.0 ≤1.8 ≤1.8 ≤2.0

Polarization Vertical

PIM, 3rd Order, 2x20W(dBc) ≤-140 | -150 | -153

Front to Back Ratio(dB), dB ≥8 ≥9 ≥10 ≥15 ≥11 ≥8.5

Horizontal Beam width 95° 100° 85° 65° 50° 14°

Vertical Beam width 95° 90° 82° 60° 45° 16°

Input Impedance 50 Ω

Max. Input Power 50 W

Connectorization: Connectorization N
Topology: SISO

Reference 50879

MPN A123-50879

Technical Data

Data Sheet

Download (638.06KB)
