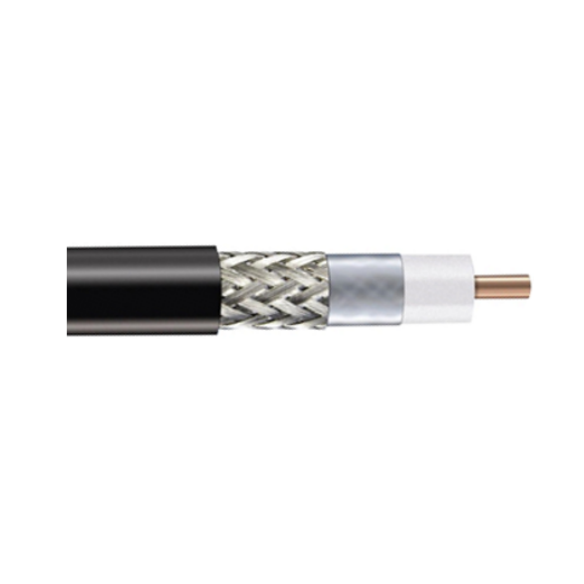

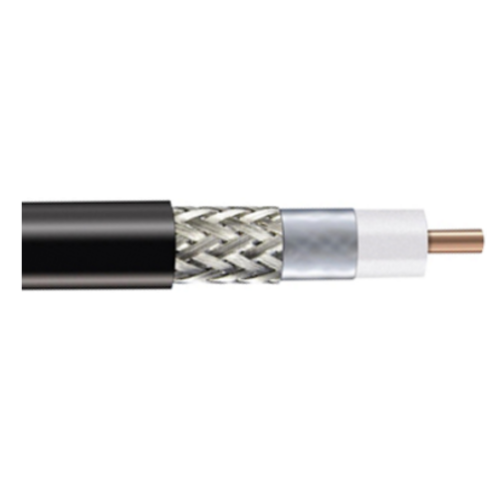

50 Ohms 240 Standard Braiding Coaxial Cable, Black LSZH Jacket, EP-240-FR

50 Ohms 240 Standard Braiding Coaxial Cable, Black LSZH Jacket, EP-240-FR

Name: 50 Ohms 240 Standard Braiding Coaxial Cable, Black LSZH Jacket, EP-240-FR
Brand: Epirsa
SKU: 49929
Price: 1.38 EUR
Availability: InStock

Ref: EP-240-FR

€1.14

Tax excluded

50 Ohm low loss coaxial cable with LMR/CNT240 type copper braid and aluminum film, LSZH flame retardant jacket and UV protection.

Measurement over cover 6.10mm (diam.), solid conductor 1.42mm (diam.)

Working frequency: 30-6000 MHz

Constructions & Dimensions

Construction

Material

Dia.(mm)

Inner conductor

Solid Copper

1.4200 mm | 0.0559 in

Dielectric

Foam PE*

3.810 mm | 0.150 in

Outer conductor

Aluminum Tape

3.988 mm | 0.157 in

Braiding

Tinned Copper

4.520 mm | 0.178 in

Jacket

LSZH**

6.100 mm | 0.240 in

Weight

0.05 kg/m

Electrical Characteristics

Cable Impedance

50 ohm

Capacitance

79.8 pF/m | 24.4 pF/ft

Dc Resistance, Inner Conductor

11.100 ohms/km | 3.384 ohms/kft

Dc Resistance, Outer Conductor

12.760 ohms/km | 3.890 ohms/kft

Dc Test Voltage

2500 V

Jacket Spark Test Voltage (rms)

2500 V

Maximum Frequency

31.00 GHz

Operating Frequency Band

30 – 6000 MHz

Peak Power

5.6 kW

Shielding Effectiveness, minimum

90dB

Relative Velocity

83 %

cover type: LSHZ
Type of cable: Coaxial
Impedance: 50 Ohm

Reference 49929

MPN EP-240-FR

Technical Data

Data Sheet

Download (550.29KB)
