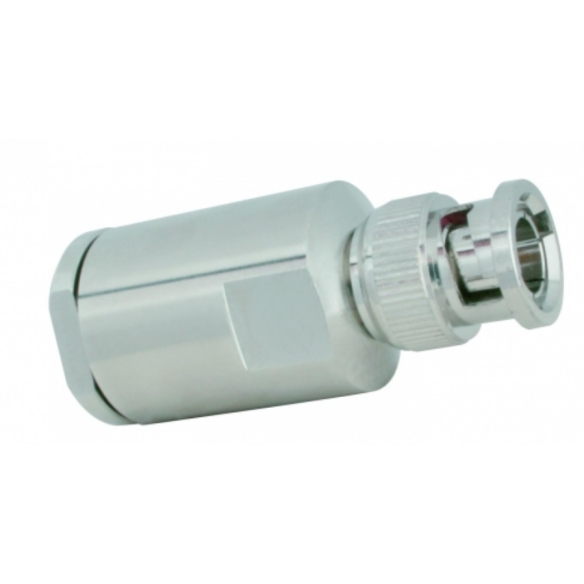

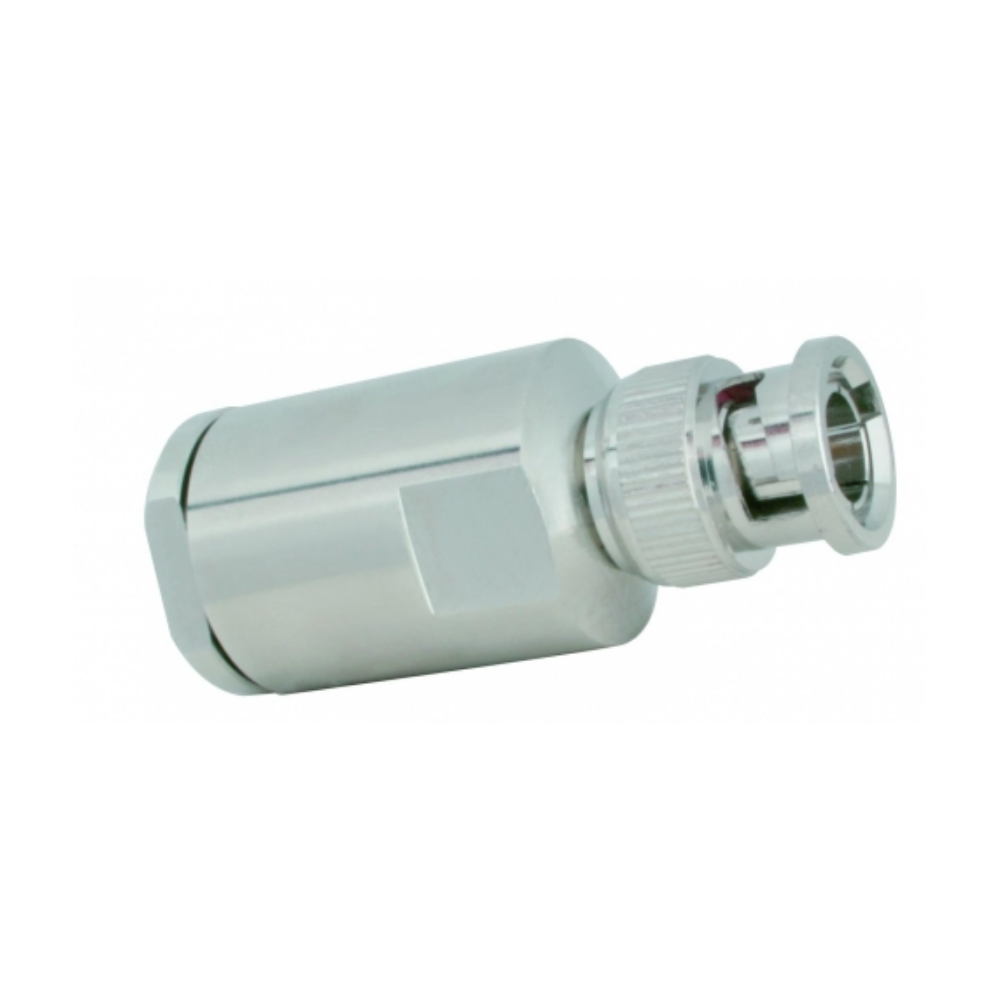

BNC straight plug connector ECOFLEX10 solder, ref 7379
BNC straight plug connector ECOFLEX10 solder, ref 7379

BNC straight plug connector ECOFLEX10 solder, ref 7379

7379

€9.38
Tax excluded

BNC 50Ohm straight plug  connector for Aircom/Ecoflex10, LMR/CNT-400, RG213 cables,... Solder-clamp assembly



Mechanical characteristics:

Cable: Ecoflex 10 / Aircom Plus
Inner conductor: solder
Outer conductor: screw
Coupling tourque: 4 - 6 Nm

Electrical characteristics:

Impedance: 50Ω
Return loss: ≤ -39,3dB@11GHz;
≤ -43,6dB@3GHz;
≤ -49,0dB@1GHz
Insertion loss: ≤ 0,05 dB
Gender
Male
Shape
Straight
Setting
Cable connector
Impedance
50 Ohm
37241
7379
