ECOFLEX 10 Cable
ECOFLEX 10 Cable

ECOFLEX 10 Cable

€5.60
Tax excluded

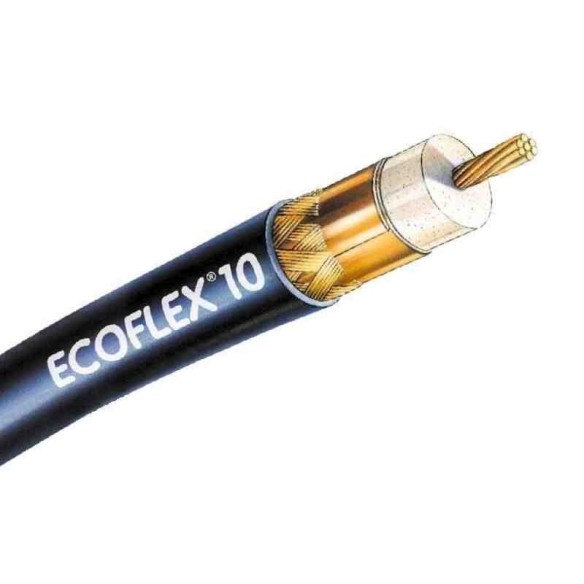

Ecoflex 10 is a flexible, very low attenuation 50 ohm coaxial cable for the frequency range up to 6 GHz. The latest production processes and the use of a low loss PE-LLC dielectric with a gas content higher than 70% allow low attenuation values, which set standards for flexible coaxial cables of this dimension. The high flexibility of Ecoflex 10 is guaranteed by a central conductor stranded with 7 strands of copper with low oxygen content. The inner conductor is compressed by special operation, calibrated and then pre-coated to achieve good damping and conformity values. Another advantage is the double shielding: an overlapping copper foil and an overlapping copper braid ensure a high screen size of > 90 dB at 1 GHz. Ecoflex 10's black PVC outer sheath is UV stabilized. To simplify installation, a high-quality solderless N connector has been developed that can be assembled in just a few minutes without special tools. Ecoflex 10 is a modern coaxial cable for all applications in high frequency technology: low attenuation, flexible, susceptible to radiation and can be used up to the microwave range.

The minimum purchase order quantity for the product is 10.



Specifications

Diámetro 10,2 ± 0,2 mm
impedancia 50 ± 2Ω
Atenuación a 1 GHz / 100 m 13,49dB
f máx. 6GHz
Euroclase según según EN 50575 eca
cover type
Cubierta PE
Type of cable
Coaxial
Impedance
50 Ohm
26301
ECOFLEX 10
