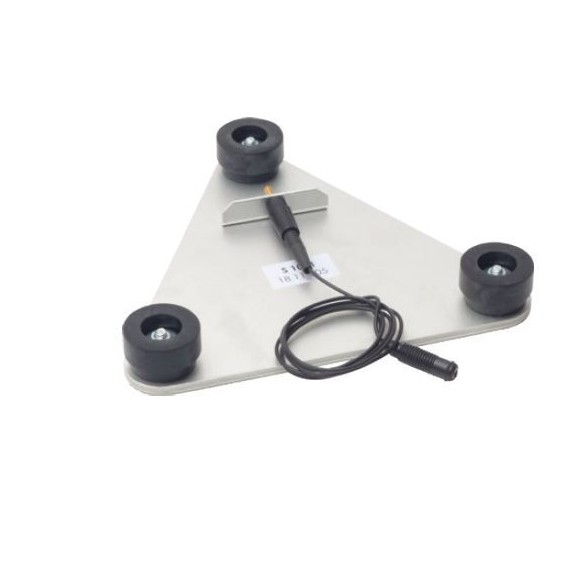

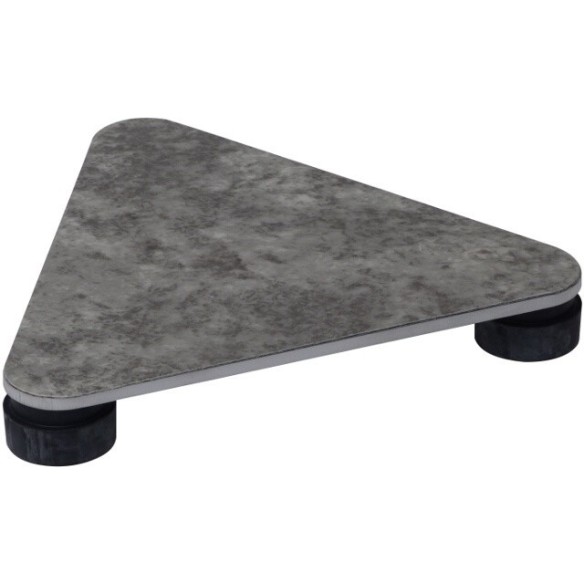

Triangular probe for soil measurement according to UNE1081 Standard.
Triangular probe for soil measurement according to UNE1081 Standard.
Triangular probe for soil measurement according to UNE1081 Standard.
Triangular probe for soil measurement according to UNE1081 Standard.
Triangular probe for soil measurement according to UNE1081 Standard.
Triangular probe for soil measurement according to UNE1081 Standard.

Triangular probe for soil measurement according to UNE1081 Standard.

7220.1081

There are not enough units in stock
€304.62

Triangular probe for soil measurement according to UNE1081 standard. accessory for metriso2000.

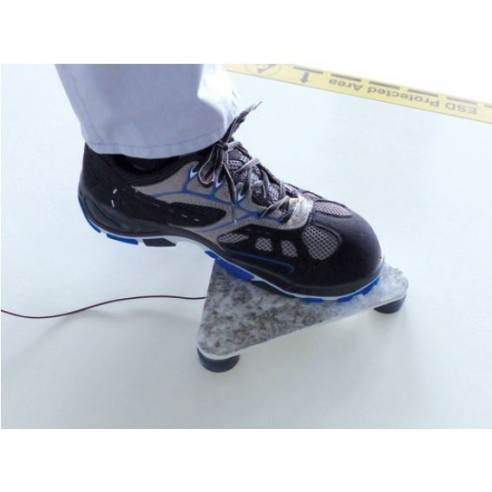

• Triple electrode according to EN1081 standard, for measuring ground resistance in relation to personnel safety.

• For measuring surface, vertical and ground resistance according to EN 1081 standard.

• Weight 500gr.

• Rubber supports: Shore 50-70 IRHD

• Contact via 4mm banana

• Rubber resistance R<500ohm.

• To carry out the measurements you must load 300Nw.


13481
