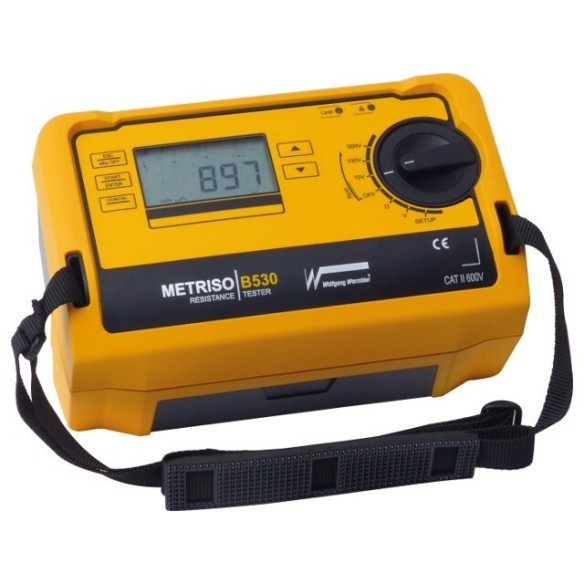

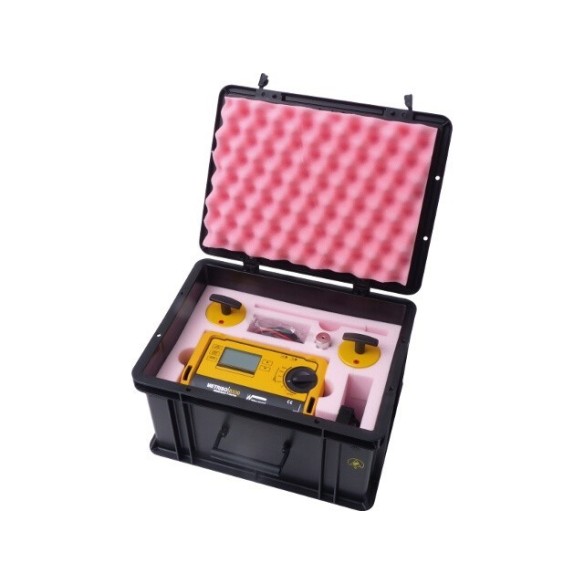

Metriso B530 measurement kit. Includes Instrument, Approved Probes 850 and 45. Conductive Suitcase.
7100.B530.MK.850
METRISO® B530 basic measurement kit includes:
Digital resistance meter

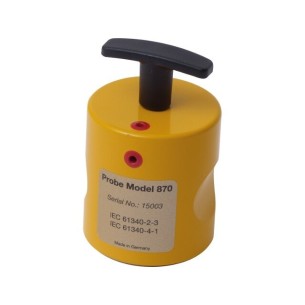

Two model 870 probes with extension
Model 45 handheld probe with connection cable
Instructions in German, English and French
Conductive suitcase adapted with pink dissipative foams.
• Valid for Pto to Pto and ground resistance measurements
• Voltage and current measurements
• Ohmic Range: 1 mA ≤ I ≤ 1.3 mA
• Voltage ranges: DC 10 volts,100 volts and 500 volts
• Test Ranges: 1 Ohm to 9.99 KOhm
1kOhm to 199GOhm
• Powered by batteries
• Probes: 2 x 870 (2.27Kg/ O 63.5 mm) with rubber base
conductive and extension. 1 x model 45, manual
complies with IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5
