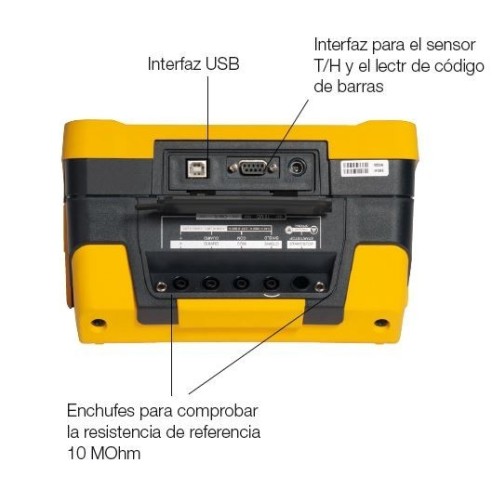

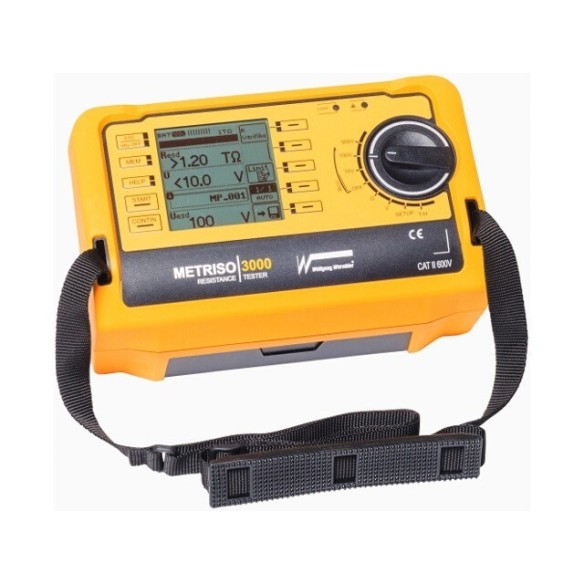

Metriso® 3000 resistance meter (Instrument only).
Metriso® 3000 resistance meter (Instrument only).
Metriso® 3000 resistance meter (Instrument only).
Metriso® 3000 resistance meter (Instrument only).

Metriso® 3000 resistance meter (Instrument only).

7100.3000.G

There are not enough units in stock
€1,984.29

Metriso 3000. ground and surface resistance tester (instrument only).

• Valid for point-to-point resistance and for resistance of grounding measurements.

• Integrated data register with USB communication port for data transmission (50,000 tested values). The supplied ETC Report Generating Software allows you to generate a complete document of the test carried out.

• Test voltage/current: 1 mA ≤ I ≤ 1.3 mA High Impedance Range: DC 10V, 100V and 500V

• Test range: Low impedance range: 1 to 9.99 Kohm High impedance range: 1 Kohm to 1.2Tohm

• Operation: with battery

Complies with: IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5
