Set of two electrodes according to IEC61340 standard for resistance testing.
Set of two electrodes according to IEC61340 standard for resistance testing.
Set of two electrodes according to IEC61340 standard for resistance testing.
Set of two electrodes according to IEC61340 standard for resistance testing.

Set of two electrodes according to IEC61340 standard for resistance testing.

7220.860

There are not enough units in stock
€289.69

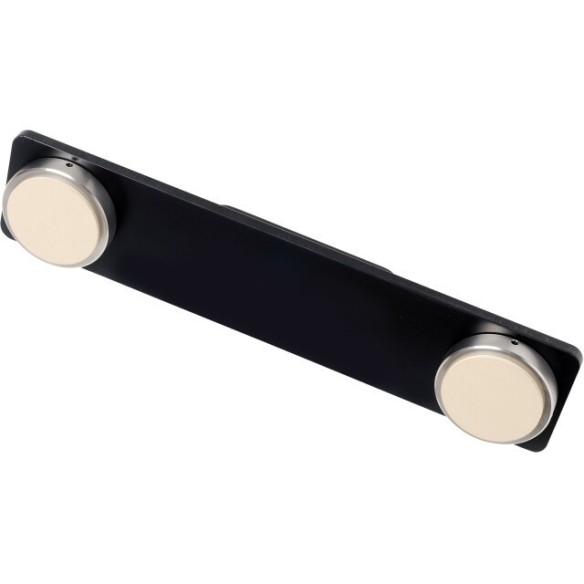

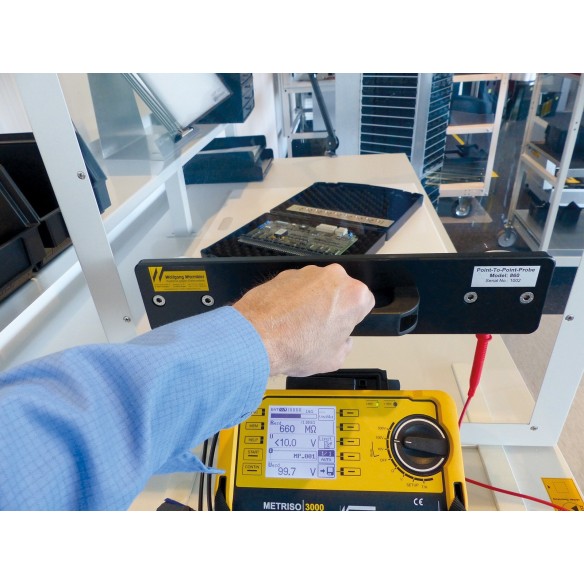

Double probe for measuring surfaces with Metriso.

• For point-to-point and ground resistance measurement with a distance between electrodes of 30cm

• Must be connected to a high resistance meter.

• Conductive rubber (R < 5 Ohm) with silver particles

• Weight 950 g

• Dimensions: 385 x 85 x 70mm (L x W x H)

• Contact rubber: Ø 63.5 mm

• Includes calibration certificate


23196

Product consultation

Please provide us with your details so that we can send you the requested information.

No reviews

16 other products in the same category:

Clamp-probe for resistance measurement in textiles.
Resistor

Clamp-probe for resistance measurement in textiles.

Wolfgang Warmbier
38828

Ref.: 7220.CL.49

€141.29
Stainless steel clamp probe for point-to-point resistance measurement, kit of two pcs. • Probe for measuring resistance pt by pt • Contact surface made of 50x25mm stainless steel • Clamp that ensures good contact • Connection: 4mm banana socket complies with IEC 61340-4-9
View
Set of probes for measuring the surface resistance of materials.
Resistor

Set of probes for measuring the surface resistance of materials.

Wolfgang Warmbier
39796

Ref.: 7220.830.SET

€705.71
Pressure electrode probe model 830, two contacts, circular and concentric. • Lightweight universal probe for ground resistance measurements, point-to-point measurements, surface resistances and volume resistance measurements. • Conductive rubber (R<5 Ohm) with silver particles • Circular shape – Concentric ring probe with magnetically...
View
SRM110 resistance meter (Instrument only).
Resistor

SRM110 resistance meter (Instrument only).

Wolfgang Warmbier
25372

Ref.: 7100.SRM200.K

€608.00
Surface resistance meter, bracelets and grounding cords. Pocket size, lightweight, surface resistance meter. • Measurement range: 103 - 1012 Ohm • Measurement voltage: open circuit with voltage of 100 V • Operation: battery operated. • Screen: 12 LEDs • Tester: Crimped metal electrodes (possibility of connecting 2 external waves)
View
SRM200 resistance meter (Instrument only).
Resistor

SRM200 resistance meter (Instrument only).

Wolfgang Warmbier
6070

Ref.: 7100.SRM110.A

€293.57
Pocket surface resistance meter with LCD display. Includes conductive carrying case, grounding cable, USB cable, calibration certificate and software for reading and storing test data. • Range: 103 - 1012 Ohm • Voltage: open circuit with voltage of 100 V (automatic ignition above  1 MOhm) • Operation: batteries • Display: LCD-Display • Probes:...
View
Metriso B530 measurement kit. Includes Instrument, Approved Probes 850 and 45. Conductive Suitcase.
Resistor

Metriso B530 measurement kit. Includes Instrument, Approved Probes 850 and 45....

Wolfgang Warmbier
36214

Ref.: 7100.B530.MK.850

€1,419.43
METRISO® B530 basic measurement kit includes: Digital resistance meter Two model 870 probes with extension Model 45 handheld probe with connection cable Instructions in German, English and French Conductive suitcase adapted with pink dissipative foams. • Valid for Pto to Pto and ground resistance measurements • Voltage and current measurements •...
View
Precision Mini Probes Kit for Metriso.
Resistor

Precision Mini Probes Kit for Metriso.

Wolfgang Warmbier
12552

Ref.: 7220.840.SET

€678.57
Kit of precision miniprobes for Metriso. • Suitcase with small compartments for point-to-point resistance measurement elements • Conductive rubber electrodes • Spring-loaded mechanism for optimal contact • Removable head • Complies with IEC 61340-2-3 standard • Includes calibration certificate
View
Probe-electrode for measuring ESD gloves.
Resistor

Probe-electrode for measuring ESD gloves.

Wolfgang Warmbier
40396

Ref.: 7220.15

€160.71
Electrode probe for measuring and checking ESD gloves. accessory for Metriso3000. For measuring the ground resistance of gloves and finger cots. • Pressure and constant area electrode. (CAFE) according to ANSI-ESDA STM 15.1 standard • Dimensions: 130 x 80 x 40 mm (L x W x H) • Weight: 460 gr.
View
Double-sided electrode kit, according to IEC61340 standard.
Resistor

Double-sided electrode kit, according to IEC61340 standard.

Wolfgang Warmbier
35022

Ref.: 7220.890.WE.SET

€607.69
suitcase with two-sided electrode, ring (superf. r.) and normal (pt. pt. r.) and accessories. • For measuring ground, pto to pto, surface and volumetric resistances. • Conductive rubber with silver particles. • Weight: 2.5Kg • Includes stainless steel plate, insulating plate, blue guard cord, conductive transport mat and certificate of approval....
View
Metriso B530 resistance meter (Instrument Only).
Resistor

Metriso B530 resistance meter (Instrument Only).

Wolfgang Warmbier
38631

Ref.: 7100.B530.G

€1,022.00
METRISO® B530 basic. instrument only. Digital resistance meter • Valid for Pto to Pto and ground resistance measurements • Voltage and current measurements • Ohmic Range: 1 mA ≤ I ≤ 1.3 mA • Voltage ranges: DC 10 volts,100 volts and 500 volts • Test Ranges: 1 Ohm to 9.99KOhm 1kOhm to 199GOhm • Powered by batteries • Complies with IEC 61340-4-1,...
View
Metriso® 3000 resistance meter (Instrument only).
Resistor

Metriso® 3000 resistance meter (Instrument only).

Wolfgang Warmbier
40449

Ref.: 7100.3000.G

€1,984.29
Metriso 3000. ground and surface resistance tester (instrument only). • Valid for point-to-point resistance and for resistance of grounding measurements. • Integrated data register with USB communication port for data transmission (50,000 tested values). The supplied ETC Report Generating Software allows you to generate a complete document of the test...
View
Temperature and relative humidity meter.
Resistor

Temperature and relative humidity meter.

Wolfgang Warmbier
36351

Ref.: 7100.TF530

€109.29
Temperature and relative humidity meter. Digital thermometer-hygrometer, fast and accurate, for measuring temperature and humidity. • Functions Max. Min. Hold • Backlit screen • Auto power off • Head - 1/4 inch tripod • Measurement ranges: Temperature: -30...+70°C Humidity: 0...100% • Dimensions: 165 x 52 x 35 mm (L x W x H) • Weight: 115g...
View
